PXIe-6366

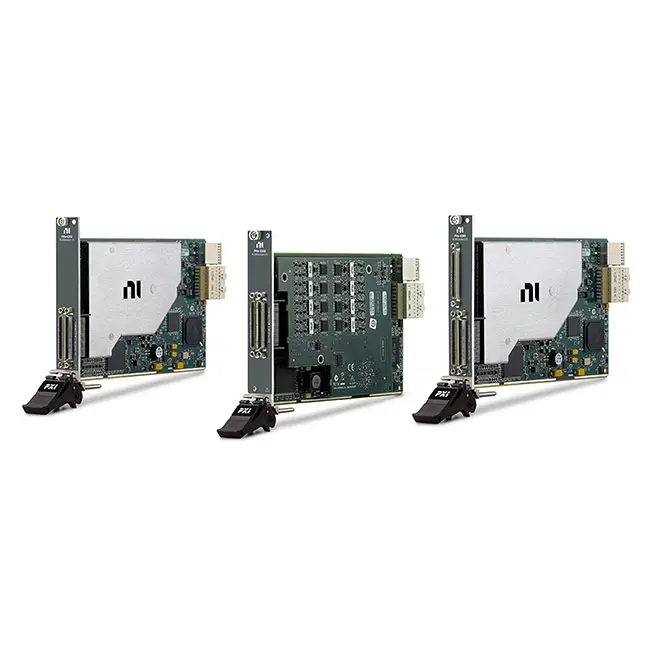

The PXIe‑6366 is a simultaneous sampling, multifunction DAQ device. It offers analog I/O, digital I/O, four 32‑bit counters, and analog and digital triggering. Onboard NI‑STC3 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks. The PXIe‑6366 is ideal for a variety of applications, such as IF digitization; transient recording; ISDN, ADSL, and POTS manufacturing test in the telecom industry; ultrasound and sonar testing; and high-energy physics. The included NI‑DAQmx driver and configuration utility simplify configuration and measurements.

Part Number(s): 781057-01

Applications and Use Cases of PXIe-6366

The PXIe-6366 Multifunction I/O Module is a high-performance multifunction data acquisition (DAQ) module for PXI Express systems. It integrates analog input, analog output, digital I/O, and counter/timer functions into a single module, making it suitable for a wide range of test, measurement, automation, and control applications that require reliable and flexible signal acquisition and generation.

1. High-Speed Data Acquisition
PXIe-6366 is widely used for acquiring analog and digital signals from sensors, instruments, and electronic systems, delivering accurate and synchronized data capture for demanding applications.

2. Sensor and Transducer Measurement
It is suitable for measuring various physical parameters such as voltage, current, temperature, pressure, vibration, displacement, and other transducer outputs.

3. Industrial Automation and Process Control
With integrated analog and digital I/O, PXIe-6366 is ideal for process monitoring, actuator control, system feedback, and closed-loop automation applications.

4. Digital I/O and Embedded System Testing
Its digital I/O functionality makes it useful for testing logic circuits, embedded systems, relays, switches, and industrial control interfaces.

5. Counter/Timer and Motion Control Applications
The built-in counter/timer functions support encoder measurement, pulse generation, event counting, frequency measurement, and motion-related testing.

6. Hardware-in-the-Loop (HIL) Simulation
PXIe-6366 is often used in HIL simulation systems, where analog and digital signals must be generated and acquired simultaneously to emulate real-world operating conditions.

7. Research, Development, and Prototyping
It is widely adopted in R&D labs, universities, and engineering teams for prototype development, system validation, and flexible multifunction test setups.
