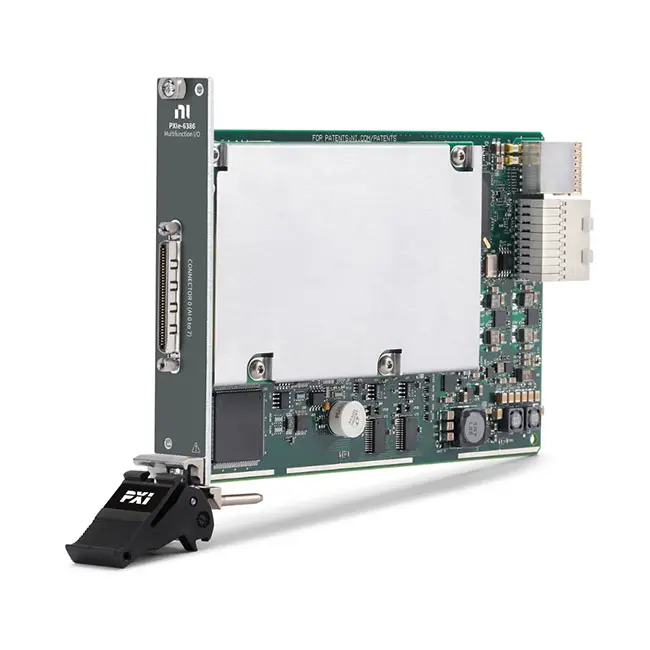

PXIe-6386

The PXIe-6386 is a simultaneous sampling, multifunction DAQ device. It offers analog I/O, digital I/O, four 32‑bit counters, and analog and digital triggering. Onboard NI-STC3 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks. The PXIe-6386 is ideal for a variety of applications, such as IF digitization; transient recording; ISDN, ADSL, and POTS manufacturing test in the telecom industry; ultrasound and sonar testing; and high-energy physics. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.

Part Number(s): 785926-01

Applications and Use Cases of PXIe-6386

The PXIe-6386 Multifunction I/O Module is a high-speed multifunction data acquisition (DAQ) module for PXI Express systems. It integrates analog input, analog output, digital I/O, and counter/timer functions into one module, making it ideal for applications that require fast sampling, precise timing, and flexible signal generation and acquisition.

1. High-Speed Data Acquisition
PXIe-6386 is widely used for high-speed acquisition of analog and digital signals from sensors, instruments, and electronic devices, making it suitable for dynamic signal measurement and real-time monitoring.

2. Sensor and Transducer Measurement
It can be used to measure a variety of physical signals such as voltage, current, temperature, pressure, vibration, displacement, and other sensor outputs with high accuracy.

3. Industrial Automation and Control
With integrated analog and digital I/O, PXIe-6386 is suitable for process monitoring, actuator control, system feedback, and closed-loop automation testing in industrial environments.

4. Digital I/O and Embedded System Validation
Its digital I/O capability makes it ideal for testing logic circuits, embedded controllers, relays, switches, and industrial communication or control interfaces.

5. Counter/Timer and Motion Applications
The built-in counter/timer functions support encoder measurement, pulse generation, event counting, frequency measurement, and motion-related control applications.

6. Hardware-in-the-Loop (HIL) Simulation
PXIe-6386 is often used in HIL simulation systems, where analog and digital signals must be generated and acquired simultaneously to emulate real-world operating conditions and validate system behavior.

7. Research, Development, and Engineering Validation
It is widely adopted in R&D labs, universities, and engineering teams for prototype development, system verification, and experimental testing requiring high-speed multifunction I/O.
